Graphics Packs and Sounds
RomVault supports custom graphics packs and sounds. A graphics pack allows you to replace most RomVault images so you can personalize to your liking. Anyone is free to create their own packs for their personal use or to share with others.

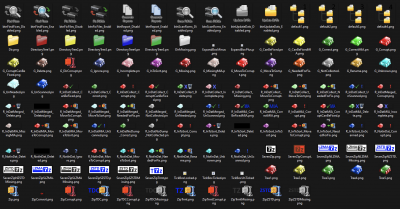

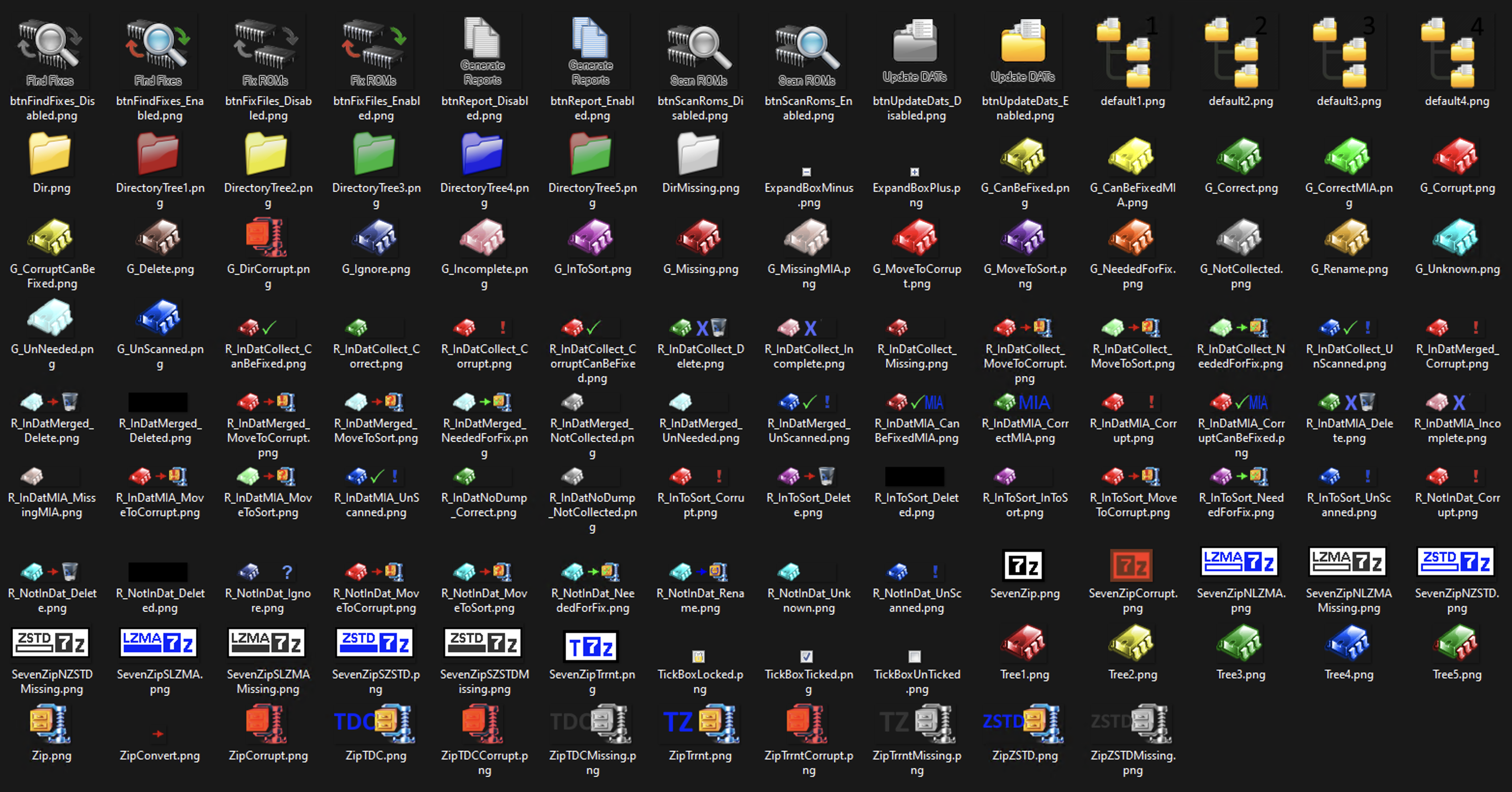

(Metro Dark theme using Dark Mode)
Downloads
The following packs have been created by the community for anyone to use. If you have a graphics pack you would like to share please reach out on Discord so it can be featured here.
| Name | Author | Download | Preview |
|---|---|---|---|
| ROMVault 3.7.0+ | |||
| Metro+ (Light) | johnsanc & azazel_1125 | graphics.zip |  |
| Metro+ (Dark) | johnsanc & azazel_1125 | graphics.zip |  |
| Default Universal | stellan90 | graphics.zip |  |
| Default Light | GordonJ | graphics.zip |  |
| ROMVault 3.5.0 to 3.6.4 | |||
| Metro (Light) | azazel_1125 | graphics.zip |  |
| Metro (Dark) | azazel_1125 | graphics.zip | |

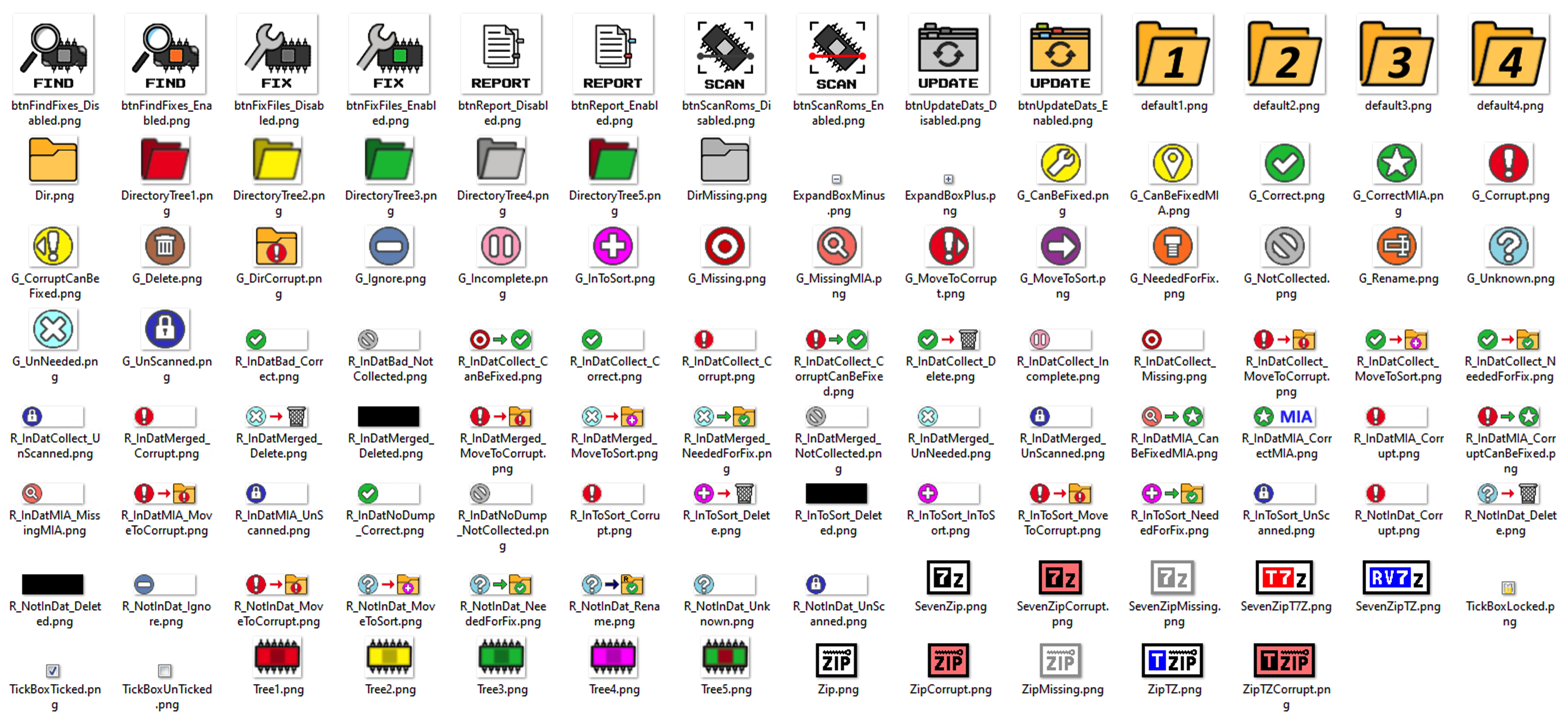

| Accessible Icons | johnsanc | graphics.zip |  |
| Fruit Machine | johnsanc | graphics.zip |  |
| Pac-Man | johnsanc | graphics.zip |  |
| Food Wangs | johnsanc | graphics.zip |  |

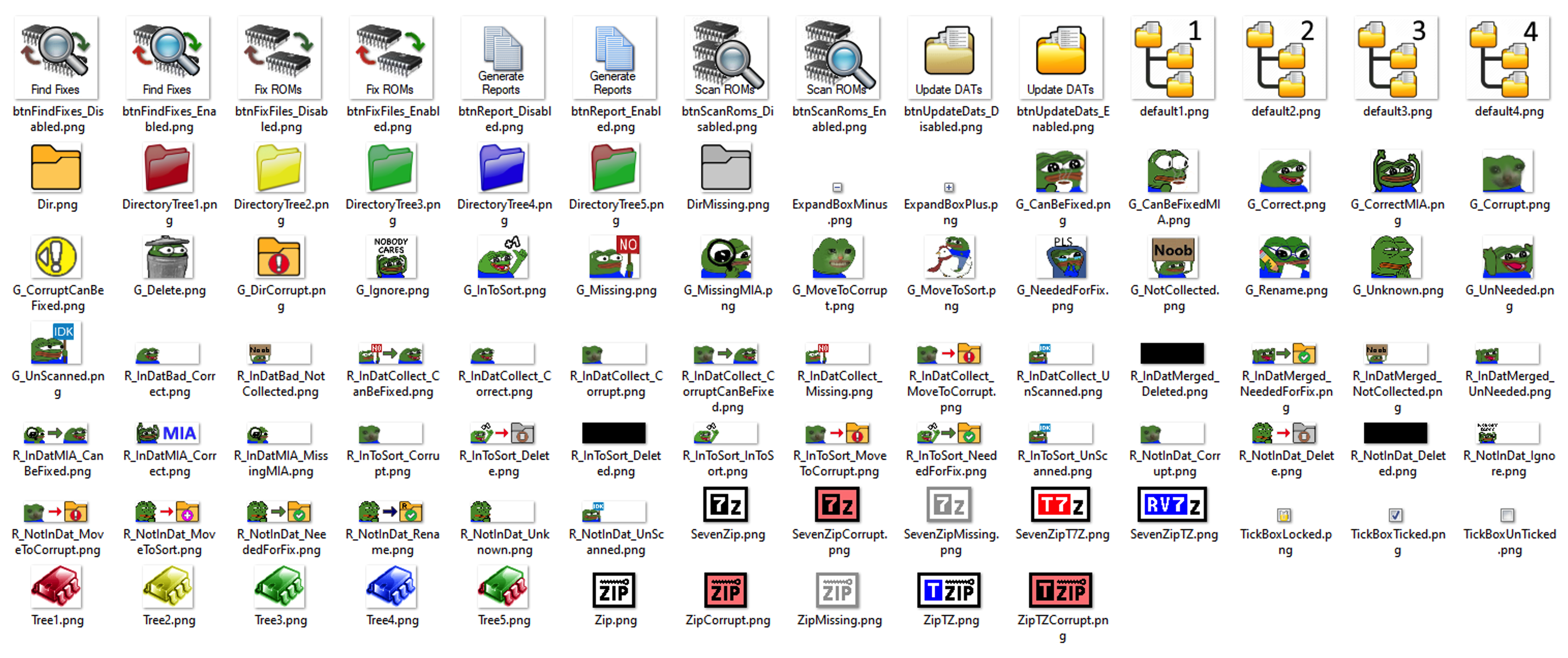

| Pepe Pack | xXGigaChadXx | graphics.zip |  |
How to Use
Custom graphics should be placed in ZIP archive named graphics.zip or in a folder called graphics in the RomVault directory.
Image Specifications
All images should be in PNG format with transparent backgrounds. For compatibility, its recommended to use image dimensions that match the default graphics. The table below outlines all supported image filenames:
| Filename | Dimensions | Usage |
|---|---|---|
| btnFindFixes_Disabled.png | 80 x 80 px | Side Bar |
| btnFindFixes_Enabled.png | 80 x 80 px | Side Bar |
| btnFixFiles_Disabled.png | 80 x 80 px | Side Bar |
| btnFixFiles_Enabled.png | 80 x 80 px | Side Bar |
| btnReport_Disabled.png | 80 x 80 px | Side Bar |
| btnReport_Enabled.png | 80 x 80 px | Side Bar |
| btnScanRoms_Disabled.png | 80 x 80 px | Side Bar |
| btnScanRoms_Enabled.png | 80 x 80 px | Side Bar |
| btnUpdateDats_Disabled.png | 80 x 80 px | Side Bar |
| btnUpdateDats_Enabled.png | 80 x 80 px | Side Bar |
| default1.png | 80 x 80 px | Side Bar |
| default2.png | 80 x 80 px | Side Bar |
| default3.png | 80 x 80 px | Side Bar |
| default4.png | 80 x 80 px | Side Bar |
| Dir.png | 48 x 48 px | Game List Grid |
| DirectoryTree1.png | 48 x 48 px | DAT Tree |
| DirectoryTree2.png | 48 x 48 px | DAT Tree |
| DirectoryTree3.png | 48 x 48 px | DAT Tree |
| DirectoryTree4.png | 48 x 48 px | DAT Tree |
| DirectoryTree5.png | 48 x 48 px | DAT Tree |
| DirMissing.png | 48 x 48 px | Game List Grid |
| ExpandBoxMinus.png | 9 x 9 px | DAT Tree |
| ExpandBoxPlus.png | 9 x 9 px | DAT Tree |
| G_CanBeFixed.png | 48 x 41 px | Game List Grid, Color Key |
| G_CanBeFixedMIA.png | 48 x 41 px | Game List Grid, Color Key |
| G_Correct.png | 48 x 41 px | Game List Grid, Color Key |
| G_CorrectMIA.png | 48 x 41 px | Game List Grid, Color Key |
| G_Corrupt.png | 48 x 41 px | Game List Grid, Color Key |
| G_CorruptCanBeFixed.png | 48 x 41 px | Game List Grid, Color Key |
| G_Delete.png | 48 x 41 px | Game List Grid, Color Key |
| G_DirCorrupt.png | 48 x 41 px | Game List Grid, Color Key |
| G_Ignore.png | 48 x 41 px | Game List Grid, Color Key |
| G_Incomplete.png | 48 x 41 px | Game List Grid, Color Key |
| G_InToSort.png | 48 x 41 px | Game List Grid, Color Key |
| G_Missing.png | 48 x 41 px | Game List Grid, Color Key |
| G_MissingMIA.png | 48 x 41 px | Game List Grid, Color Key |
| G_MoveToCorrupt.png | 48 x 41 px | Game List Grid, Color Key |
| G_MoveToSort.png | 48 x 41 px | Game List Grid, Color Key |
| G_NeededForFix.png | 48 x 41 px | Game List Grid, Color Key |
| G_NotCollected.png | 48 x 41 px | Game List Grid, Color Key |
| G_Rename.png | 48 x 41 px | Game List Grid, Color Key |
| G_Unknown.png | 48 x 41 px | Game List Grid, Color Key |
| G_UnNeeded.png | 48 x 41 px | Game List Grid, Color Key |
| G_UnScanned.png | 48 x 41 px | Game List Grid, Color Key |
| R_InDatBad_Correct.png | 61 x 20 px | ROM Details Grid |
| R_InDatBad_NotCollected.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_CanBeFixed.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_Correct.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_Corrupt.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_CorruptCanBeFixed.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_Delete.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_Incomplete.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_Missing.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_MoveToCorrupt.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_MoveToSort.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_NeededForFix.png | 61 x 20 px | ROM Details Grid |
| R_InDatCollect_UnScanned.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_Corrupt.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_Delete.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_Deleted.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_MoveToCorrupt.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_MoveToSort.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_NeededForFix.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_NotCollected.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_UnNeeded.png | 61 x 20 px | ROM Details Grid |
| R_InDatMerged_UnScanned.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_CanBeFixedMIA.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_CorrectMIA.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_Corrupt.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_CorruptCanBeFixed.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_Delete.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_Incomplete.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_MissingMIA.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_MoveToCorrupt.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_MoveToSort.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_NeededForFix.png | 61 x 20 px | ROM Details Grid |
| R_InDatMIA_UnScanned.png | 61 x 20 px | ROM Details Grid |
| R_InDatNoDump_Correct.png | 61 x 20 px | ROM Details Grid |
| R_InDatNoDump_NotCollected.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_Corrupt.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_Delete.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_Deleted.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_InToSort.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_MoveToCorrupt.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_NeededForFix.png | 61 x 20 px | ROM Details Grid |
| R_InToSort_UnScanned.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_Corrupt.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_Delete.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_Deleted.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_Ignore.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_MoveToCorrupt.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_MoveToSort.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_NeededForFix.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_Rename.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_Unknown.png | 61 x 20 px | ROM Details Grid |
| R_NotInDat_UnScanned.png | 61 x 20 px | ROM Details Grid |
| SevenZip.png | <90 x 34 px | Game List Grid |
| SevenZipCorrupt.png | <90 x 34 px | Game List Grid |
| SevenZipMissing.png | <90 x 34 px | Game List Grid |
| SevenZipNLZMA.png | <90 x 34 px | Game List Grid |
| SevenZipNLZMAMissing.png | <90 x 34 px | Game List Grid |
| SevenZipNZSTD.png | <90 x 34 px | Game List Grid |
| SevenZipNZSTDMissing.png | <90 x 34 px | Game List Grid |
| SevenZipSLZMA.png (Old: SevenZipTZ.png) | <90 x 34 px | Game List Grid |
| SevenZipSLZMAMissing.png | <90 x 34 px | Game List Grid |
| SevenZipSZSTD.png | <90 x 34 px | Game List Grid |
| SevenZipSZSTDMissing.png | <90 x 34 px | Game List Grid |
| SevenZipT7Z.png | <90 x 34 px | Game List Grid |
| TickBoxLocked.png | 13 x 13 px | DAT Tree |
| TickBoxTicked.png | 13 x 13 px | DAT Tree |
| TickBoxUnTicked.png | 13 x 13 px | DAT Tree |
| Tree1.png | 48 x 41 px | DAT Tree |
| Tree2.png | 48 x 41 px | DAT Tree |
| Tree3.png | 48 x 41 px | DAT Tree |
| Tree4.png | 48 x 41 px | DAT Tree |
| Tree5.png | 48 x 41 px | DAT Tree |
| Zip.png | <90 x 34 px | Game List Grid |
| ZipConvert.png | <90 x 34 px | Game List Grid |
| ZipConvert1.png | <90 x 34 px | Game List Grid |
| ZipCorrupt.png | <90 x 34 px | Game List Grid |
| ZipMissing.png | <90 x 34 px | Game List Grid |
| ZipTDC.png | <90 x 34 px | Game List Grid |
| ZipTDCMissing.png | <90 x 34 px | Game List Grid |
| ZipTrrnt.png (Old: ZipTZ.png) | <90 x 34 px | Game List Grid |
| ZipTrrntMissing.png | <90 x 34 px | Game List Grid |
| ZipZSTD.png | <90 x 34 px | Game List Grid |
| ZipZSTDMissing.png | <90 x 34 px | Game List Grid |
Custom Sounds
RomVault supports custom sounds for errors and completion events. There are no GUI options to control these sounds, but you can place custom sounds in an audio directory next to the RomVault exe.
| Path | Purpose |
|---|---|
| \audio\error.wav | Play a sound whenever an error message is triggered during a scan (E.g. scan of a corrupt zip) |
| \audio\complete.wav | Play a sound whenever a scan or fix completes |
The audio files must be in .wav format.
Video Tutorial
